JEWELLERY CAD AND DIGITAL DEVELOPMENT

From concept to CAD and print preparation.

Jewellery CAD, rendering and digital print preparation for designers, brands, manufacturers and casting businesses.

Start a project View our process
Oval infinity ring: concept sketch, grey CAD illustration, purple castable wax pattern without gemstones, and finished-design render

Digital development support for jewellery businesses

  • Jewellery CAD development

    New jewellery designs developed from sketches, references or technical requirements, with dimensions, stone settings and manufacturability considered throughout.

    View CAD development

  • Photorealistic rendering

    Clear presentation images for design approval, client communication, catalogues and marketing. Render quantities depend on the selected service tier.

    View service rates

  • Digital print preparation

    STL validation, mesh checks, orientation, support planning and PreForm preparation for your chosen printer or production partner. Physical printing is not supplied.

    View print preparation
About 2333D Build

FROM BRIEF TO DIGITAL HANDOVER

A controlled four-stage development process.

Each stage has a defined purpose, technical checks and approval point. 2333D Build supplies digital files; physical production is completed by your chosen manufacturing partner.

Images illustrate the same ring from concept to intended finish; physical printing, casting and finishing are completed by your production partner.

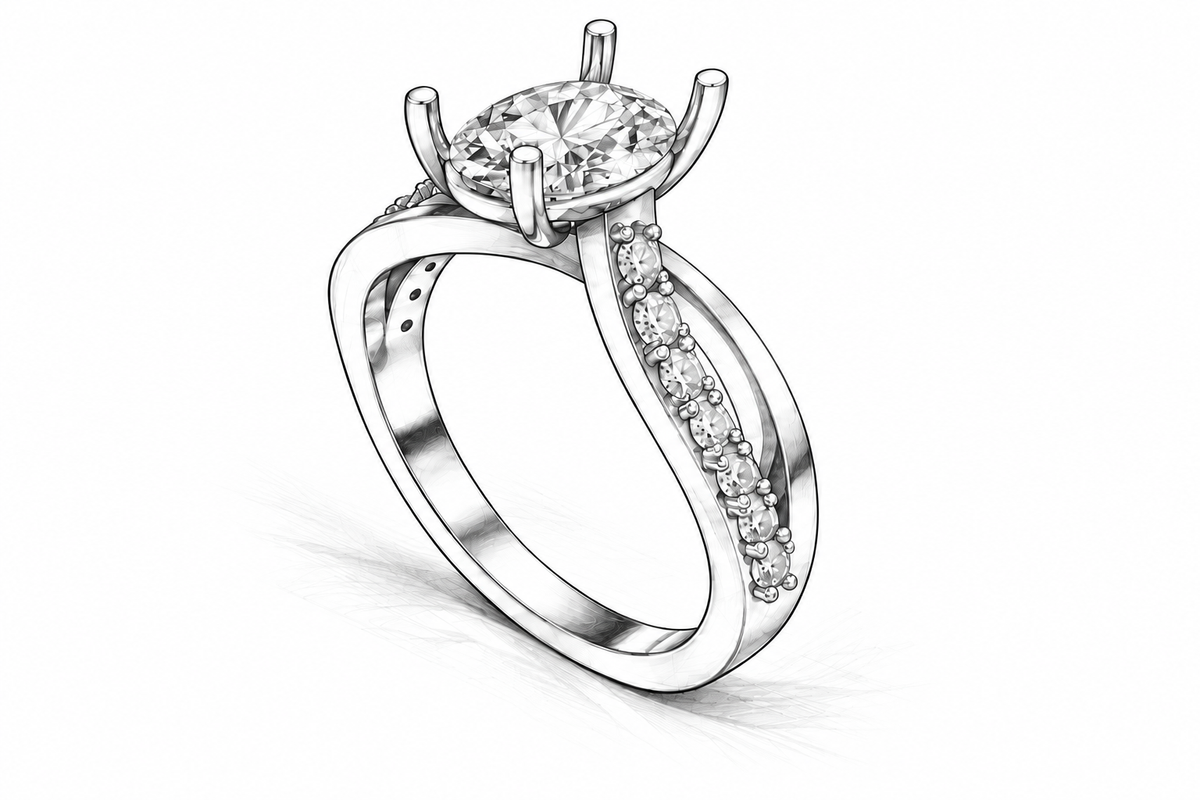

Concept sketch illustration of the oval infinity ring

01 — DESIGN

Design brief and technical planning

We define the design intent, dimensions, materials, stone information and intended manufacturing method before CAD work begins.

Explore design planning

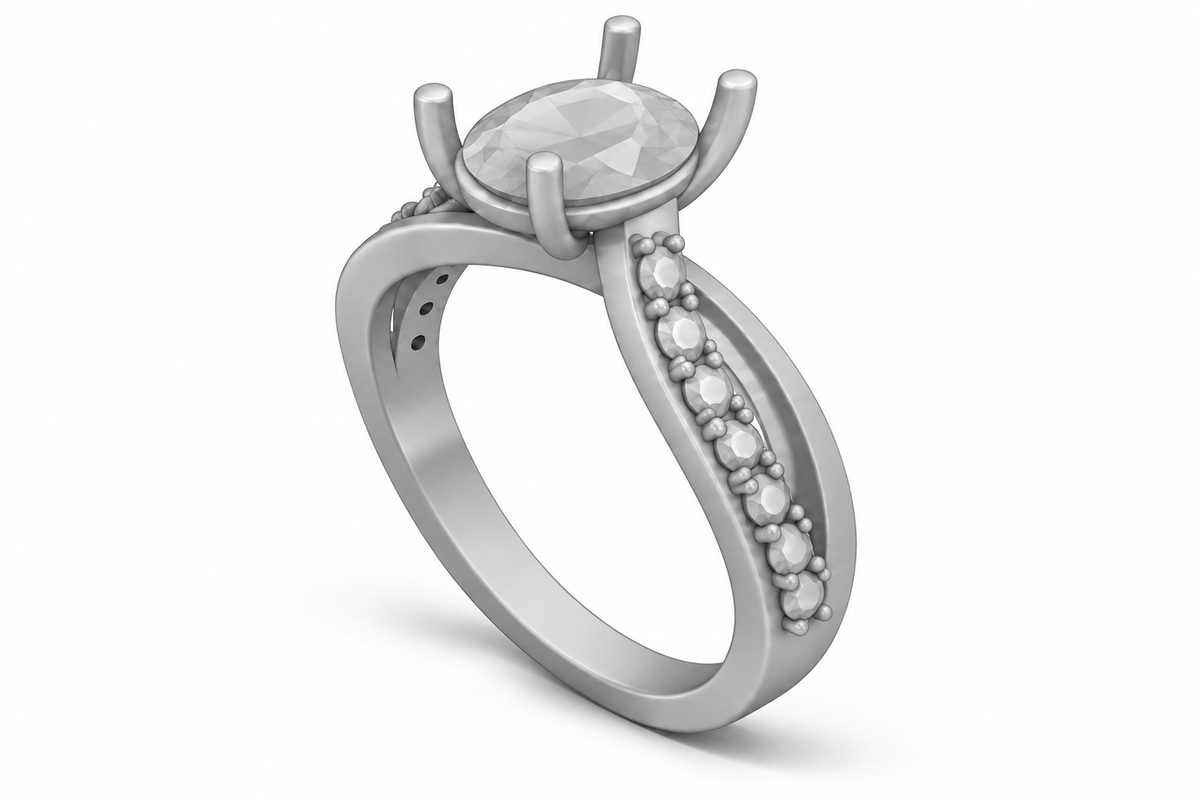

Neutral grey Rhino-style CAD illustration of the oval infinity ring

02 — CAD

Jewellery CAD development

The agreed concept is modelled and reviewed for proportions, stone settings, clearances and the intended manufacturing route.

Explore CAD development

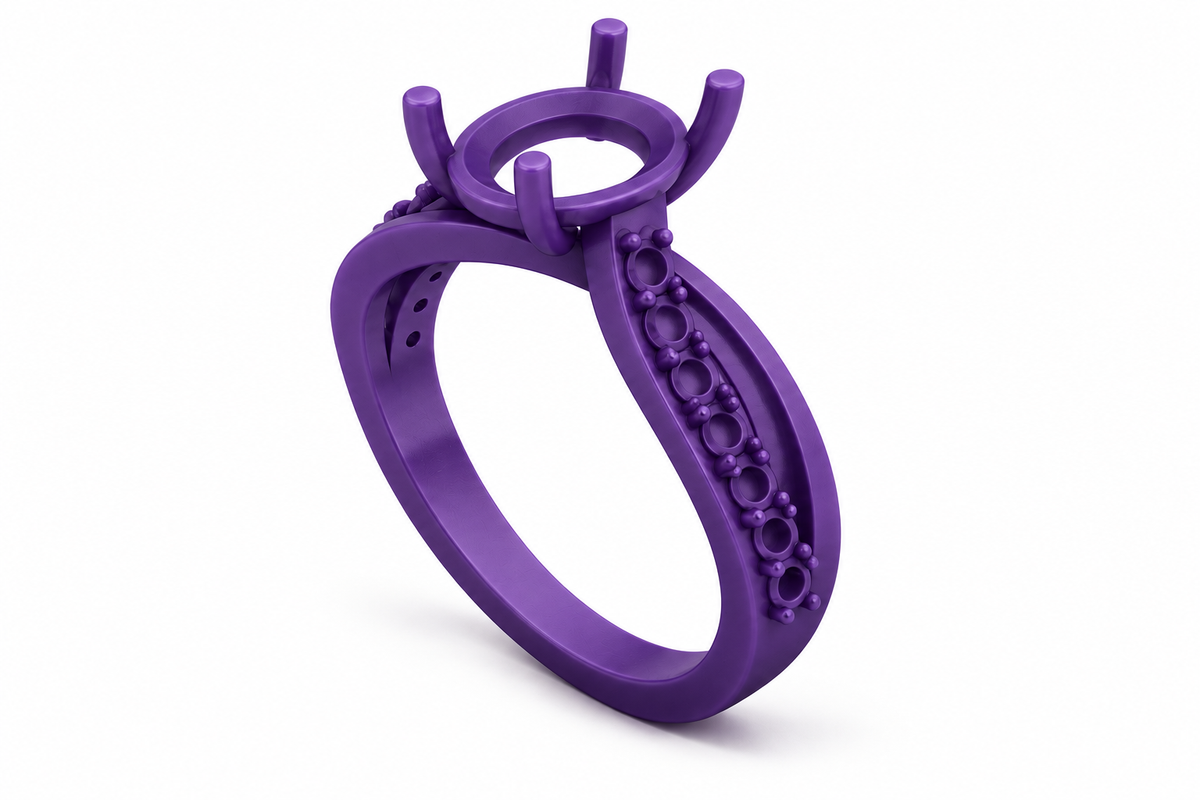

Purple castable wax pattern illustration of the oval infinity ring, without gemstones

03 — PREPARE

Digital print preparation

The approved geometry is checked as an STL mesh and, where included, oriented and supported in PreForm for the intended printer and resin.

Explore print preparation

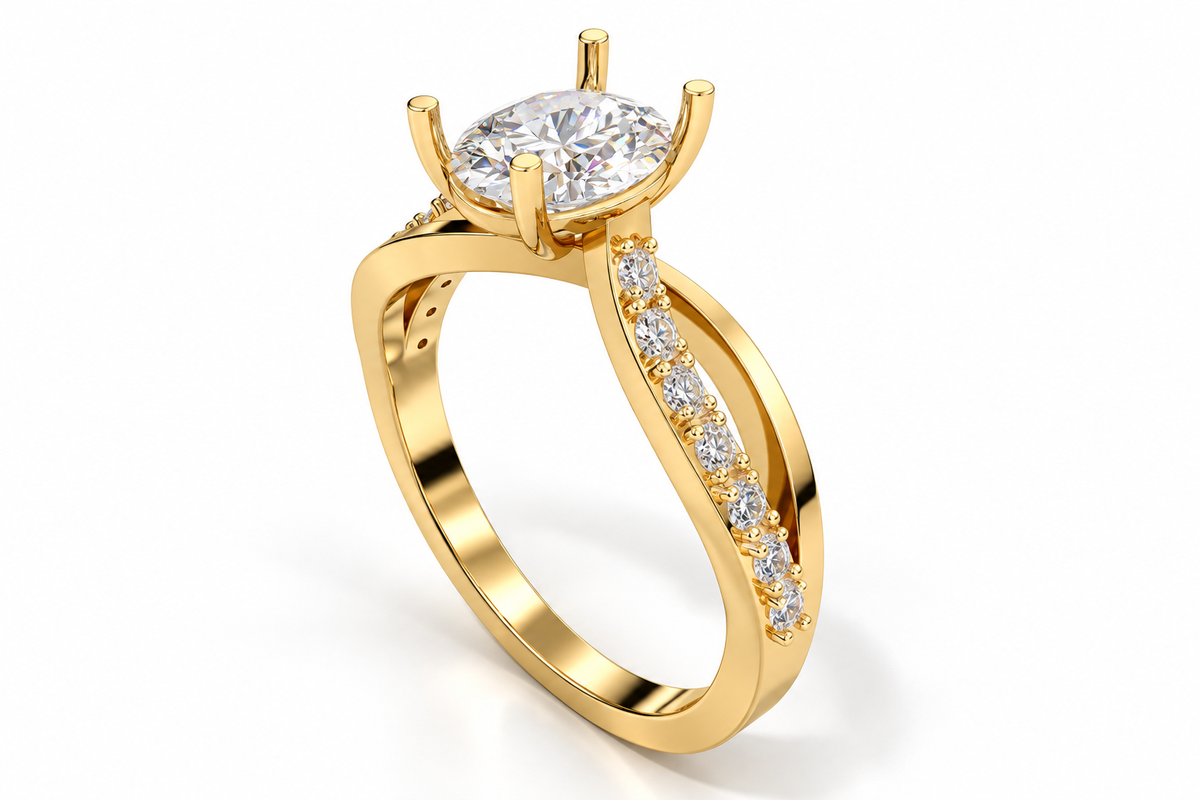

Finished-design render of the oval infinity ring in yellow gold

04 — HANDOVER

Production-file handover

Approved digital files and documented assumptions are packaged for your printer, casting house or manufacturing partner.

Explore file handover
View the complete process

Browse the CAD library by category

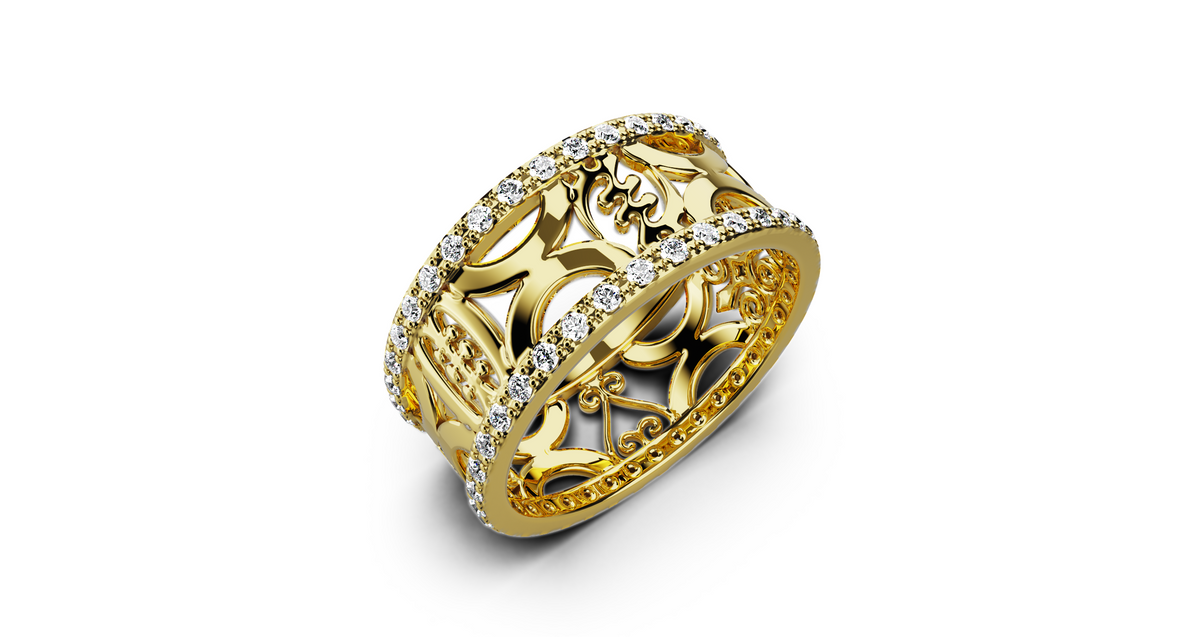

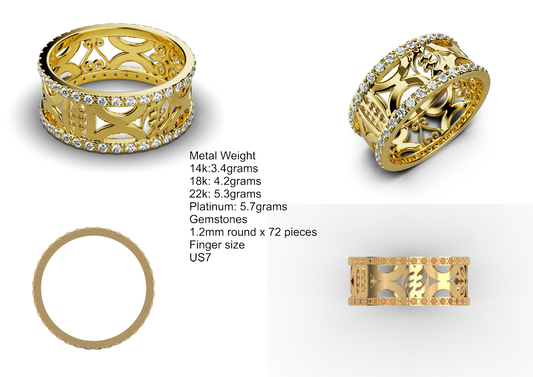

  • Adinkra Band — product view 6

    Rings

    Downloadable jewellery CAD files for rings. Supplied formats, editable status and digital...

    Rings

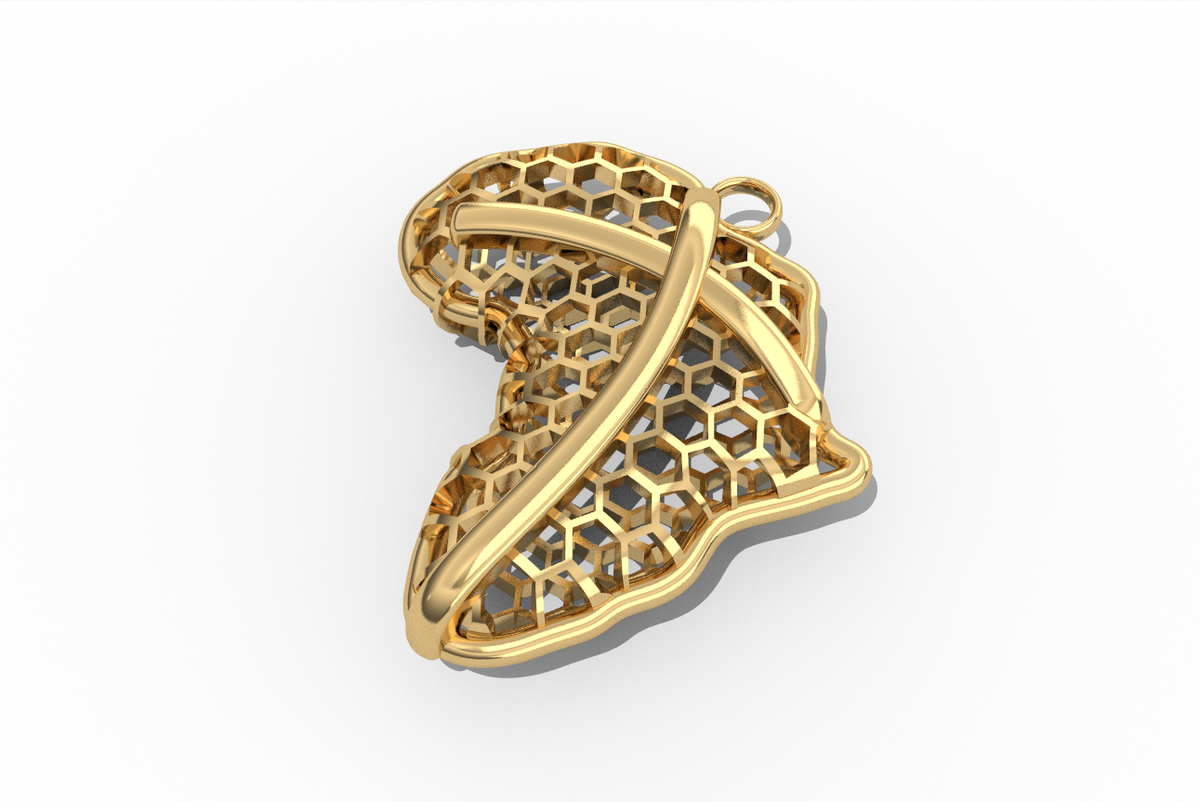

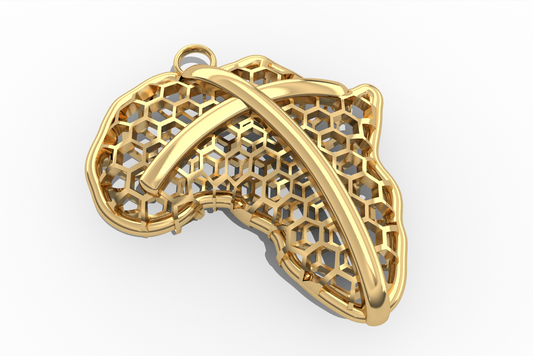

  • Africa Cross Pendant — preview 1

    Pendants

    Jewellery CAD designs for pendants, supplied as digital model files.

    Pendants

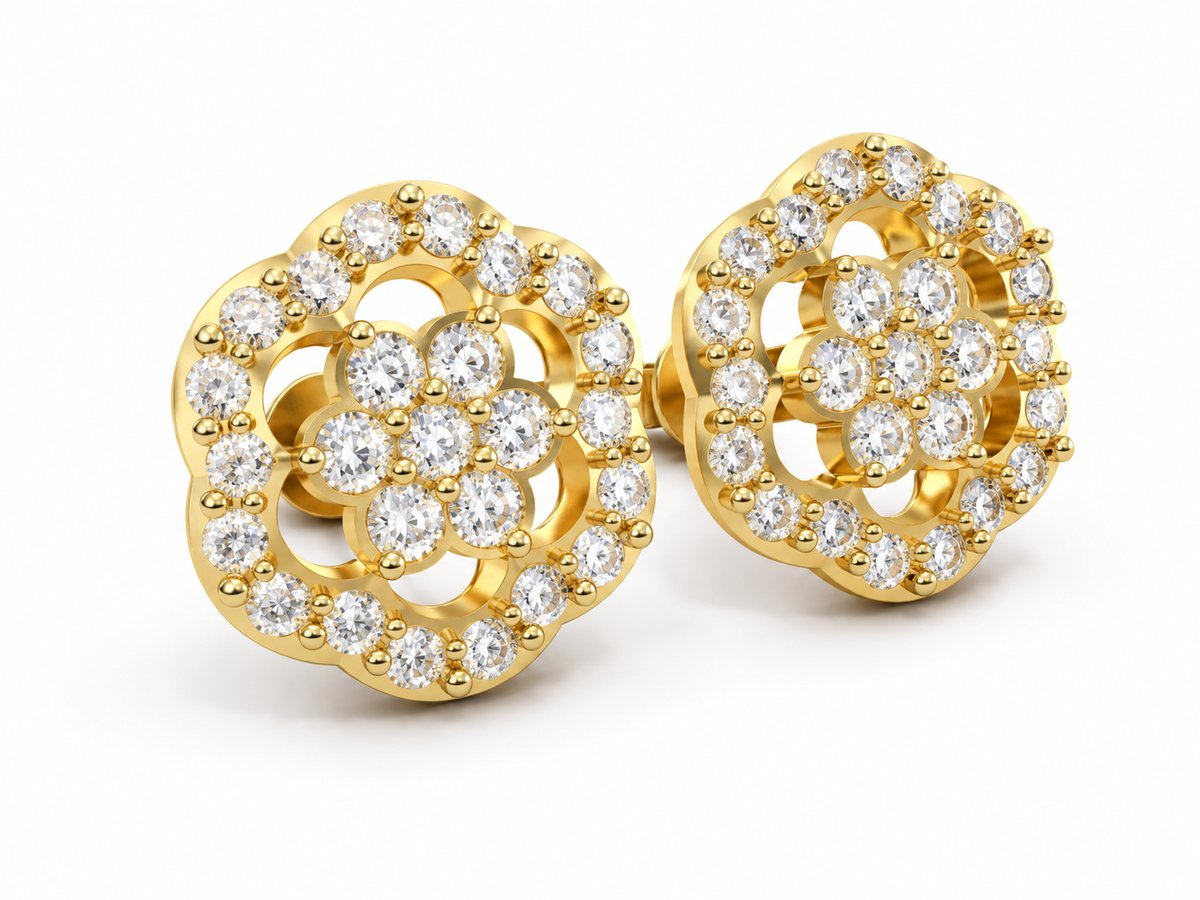

  • Cluster 2 Studs — preview 1

    Earrings

    Downloadable jewellery CAD files for earrings. Supplied formats, editable status and digital...

    Earrings

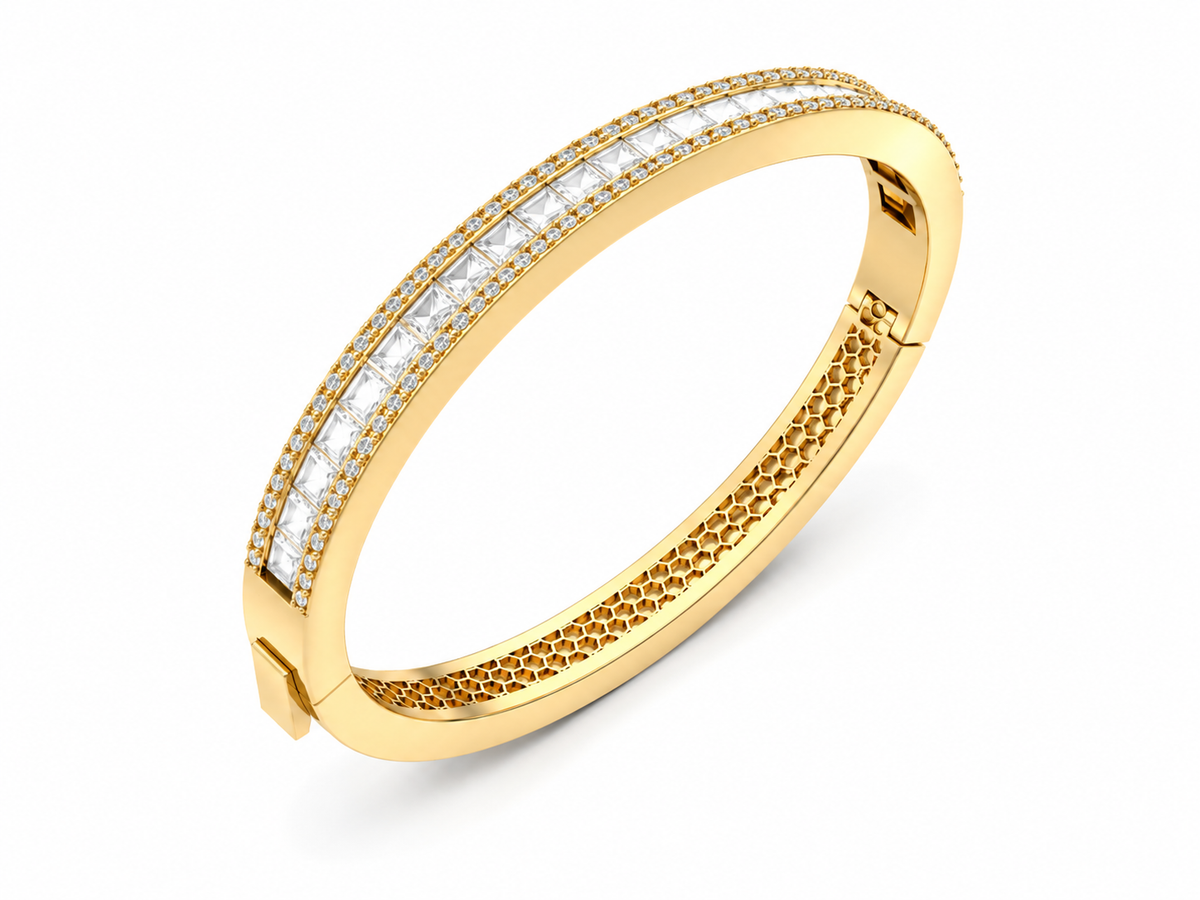

  • Channel Set Bangle — preview 1

    Bracelets

    Jewellery CAD designs for bracelets and bangles, supplied as digital model files.

    Bracelets

  • Adinkra Band — product view 6

    CAD Library

    Downloadable jewellery CAD and digital production files. Supplied formats, editable status and...

    CAD Library

1 5

Latest CAD designs

Downloadable jewellery CAD and digital production files. Supplied formats, editable status and technical preparation vary by listing.

1 4
View all

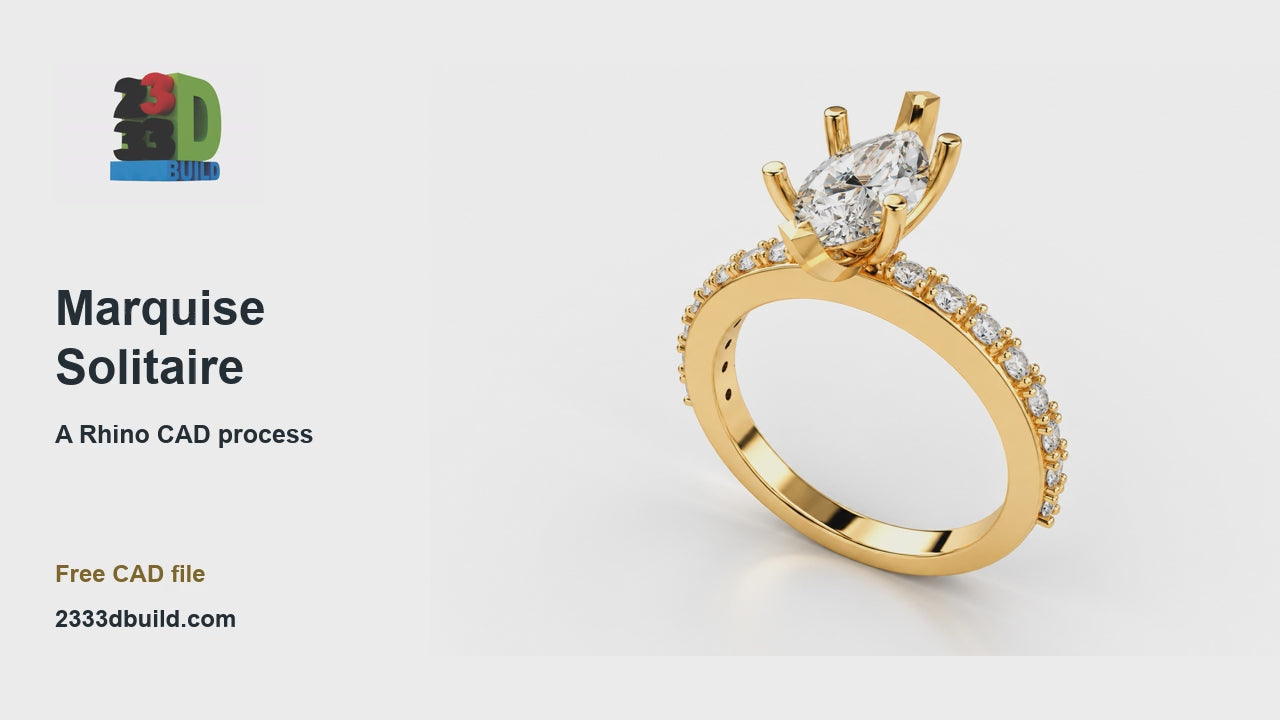

Watch the marquise solitaire CAD process

See how this design was modelled, then explore the images, specifications and free CAD package.

View images and get the free CAD package

Try a free CAD file

Explore the free marquise solitaire design, view the product images and review the included Rhino 3DM and STL files.

View the free CAD package
